Modular Ring Relay

  • Make Something Happen When Line Rings2 Form C Contacts (DPDT)For Analog Lines and Station Ports
Unit Price
US$ 34.17
US$ 34.17
Congratulations! You got a great price!
Add to cart Added

This relay gets bridged across (in parallel with) an analog POTS line or station port. You can make just about anything happen when the line rings with this relay!

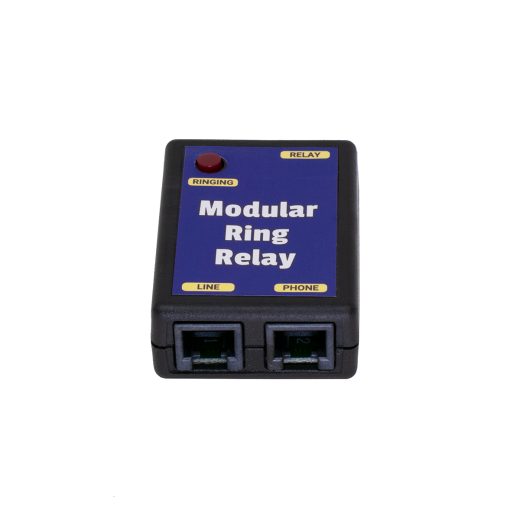

The line powered Modular Ring Relay has two mod jacks on one side of the box. These two jacks are for the phone line. If you need it going out to a phone or CPE device, use the other jack. The two jacks are bridged together. It doesn’t matter which one you use.

The DPDT relay contacts are brought out on a 6 Pin Modular Jack on the opposite side of the box (spec sheet with pinout diagram below) through a short solid wire 6 conductor cord (included) that can be punched down to a block or spliced to other wires (use UY connectors / B-Wire Connectors – not included).

Ring Relay Specs:
