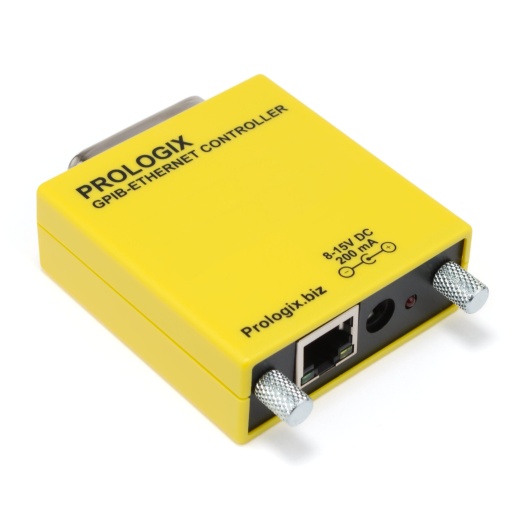

Use this controller to control, and to download screen plots and data from, Oscilloscopes, Logic Analyzers, Spectrum Analyzers and other GPIB (HPIB) enabled instruments. GPIB-ETHERNET (GPIB-LAN) controller uses the same command interface as the popular Prologix GPIB-USB controller. Being a network device, there are no drivers to install.
The GPIB-ETHERNET supports both static IP addresses and dynamic (DHCP) IP and can be switched to either controller mode or device mode.
Mfg. Part Number- GPIB-ETH
- Prologix
- FreeBSD
- Linux
- Mac OS 8/9/X
- Windows 10
- Windows 7
- Windows 8
- Windows 98/2000/XP/Vista
- IEEE 488.1
- IEEE 488.2
- PARALLEL POLL
- PASS CONTROL
- 8-15V DC, 200 mA (included)
- Power
- Static and Dynamic (DHCP)
- 1234
- 2.5 in. (L) x 2.5 in. (W) x 1.0 in. (H)
- 3 oz.
- 1 - GPIB Controler
- 1 - Power Supply
