This 1x2 HDMI Splitter and Extender kit lets you split one HDMI signal to two displays using cat5e/6 cable, and extend it up to 160ft.Local HDMI Loop-out

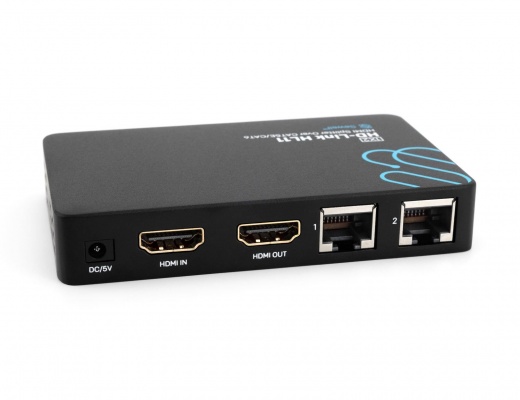

The sender unit also features an extra "HDMI OUT" so you can have a Local Display at the sender location in addition to the 2 remote displays.How it works
This kit comes with one sender/splitter unit and two receiver units.
- Simply connect one to eight receiver units to the sender with Cat5e/6 cable.
- Connect your HDMI cables from the sender and receiver units to their respective display and source devices.
- Plug in the included power supply to the sender. The Receiver units do not need their own power supply.
- Your HDMI extension is now ready.

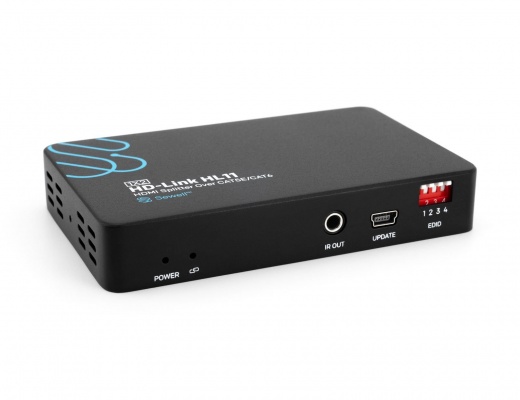

The DIP switches on the sender unit allow you to set specific EDID settings.

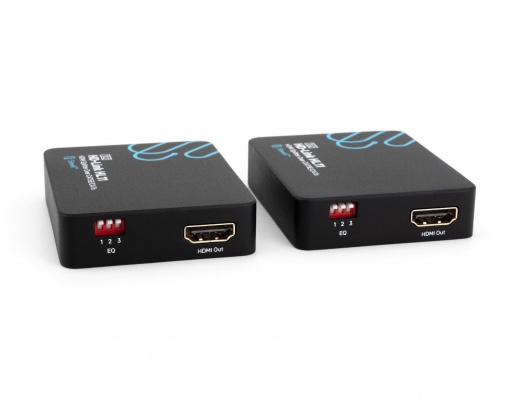

The DIP switches on the Receiver unit allow you to specify the total distance of your setup to ensure maximum signal quality.Mfg. Part Number
- Extends HDMI
- You will need a single Cat5e/6 per receiver
- Distance: up to 200ft with cat6, up to 150ft with cat5e
- Resolution: up to [email protected]
- Audio: DTS-HD, Dolby-trueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
- HDMI 1.4
- HDCP 1.4 compliant
- Power (Splitter): DC 5V 3A

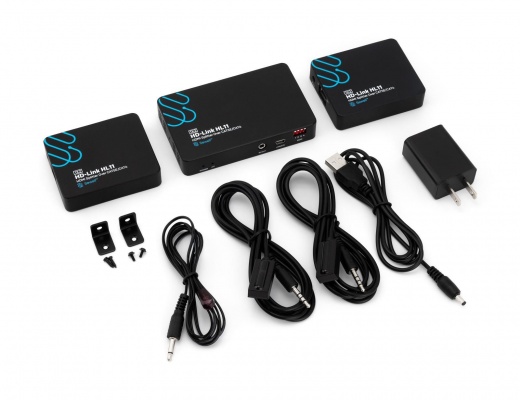

- (1) HDMI Extender Splitter (Sender)
- (2) HDMI Extender Receivers
- (1) Power Supply (For Sender. Receivers do not require power)
- (2) IR Receiver Cables
- (1) IR Emitter Cable
- (2) Mounting Brackets for Extender
