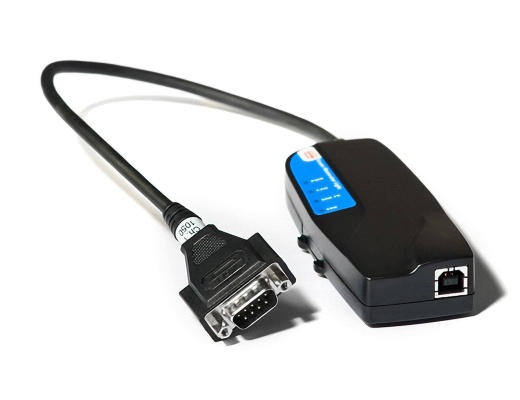

Kvaser Memorator Light Hs, Usb To Can Bus Interface And Data Logger

SKU: SEW-SW-29367
Unit Price
Quantity
Subtotal
US$ 782.75
US$ 782.75
US$ 778.051%
2
US$ 775.311%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Barcode
685289293673
Description

The Kvaser Memorator Light is a preconfigured data logger designed for troubleshooting any CAN-based (controller area network) system. The Memorator Light is an easy-to-use tool for logging serial data, with no software setup required. With an autobaud function that determines CAN bus bit rate, the Memorator Light can be attached to any high-speed CAN bus without configuration. All CAN bus traffic is logged in a circular buffer, overwriting the oldest data when the buffer becomes full. A separate circular buffer keeps track of error frame conditions and the message traffic that occurs near the conditions.

  • Single high-speed CAN channel (compliant with ISO 11898-2).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
  • Auto detects bit rate - removes the need for configuration.
  • Always in silent mode - log bus traffic without interfering.
  • 1 GByte of internal memory for message storage.
  • All received CAN frames are recorded in a circular buffer - oldest data is overwritten by the newest.
  • A second circular buffer records 1000 messages before and after an error frame occurs.
  • The Kvaser Memorator Light extraction software provides easy access to the recorded data when connected to the device via a USB port. The tool supports multiple formats used by popular analysis software. In addition, the extraction software allows the user to clear and reinitialize the device's memory.
Warranty
  • 2-Year Warranty from Kvaser.
Software
  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Mfg. Part Number
  • 73-30130-00513-6
  • Bitrate: 10-1000 kbps
  • Certificates: CE, RoHS
  • Channels: 1
  • Connectors: DSUB 9
  • Current Consumption: “~5 V and 130mA if powered from the USB and ~850mW if powered from the CAN bus.”
  • Error Counters Reading: No
  • Error Frame Generation: No
  • Galvanic Isolation: No
  • Height: 22 mm
  • Interfaces: USB
  • Internal Memory: 1 GB
  • Length: 115 mm
  • Material: PC-ABS
  • Messages Per Second Receive: 6,000 mps
  • OS: Win XP, Linux, Win 7, Win Vista, Win 8, Win 10
  • Silent Mode: Yes
  • Sound: No
  • Temperature Range: -40 to 85 °C
  • Timestamp Resolution: 2 µs
  • Weight: 150 g
Shipping specs
Weight
2.36 lbs
Shipping from
This product is shipped from our supplier's warehouse in UT, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
